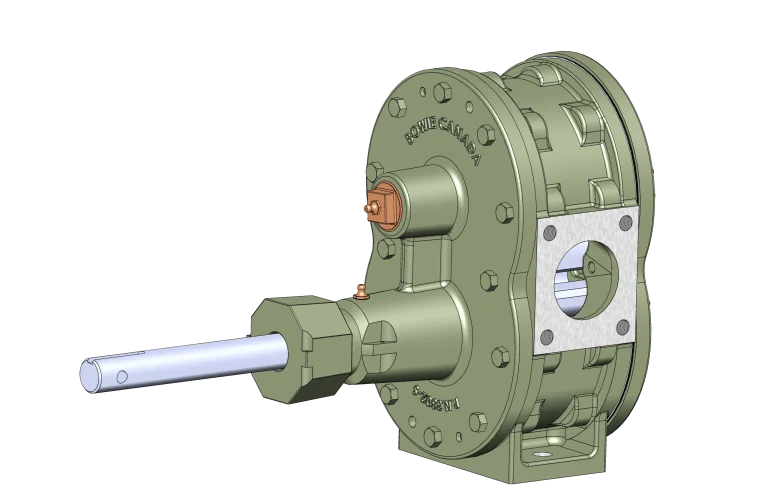

Eco-Seal 2300 S
This is the same pump as the 2300 Eco-Seal but with a shorter drive neck. This allows for the easiest access when minimal clearance is available for pump maintenance. Pumps up to 185 gpm with rubber gears and 290 gpm with steel gears.
Pump Life
Flow Volume
Leak Resistance
Ease of Repair
Standard
Options
Drive Configuration
Drive on Bottom
Drive on Top
Port Configuration
180 Degree
Housing
Ductile Iron
End Plates
Ductile Iron
Wear Plates
Hardened Steel
Gears
Buna-N Nitrile
Helical Steel
Helical Steel
Helical Delrin
Bushings
Bronze
Teflon
Bearings
N/A
N/A
Packing
N/A
N/A
Lip Seals
High-Performance
N/A
Mechanical Seal
N/A
N/A
Shafts
1 1/8" Steel
1 1/8" Stainless Steel
Ref #
Part Number
Description
Qty
1
303
Centre Case
1
2
305N
Buna-N Nitrile Drive Gear c/w Drive Shaft and Key
1
305HCN
Helical Steel Drive Gear c/w Drive Shaft and Key
1
3
304N
Buna-N Nitrile Idler Gear c/w Idler Shaft and Key
1
304HCN
Helical Steel Idler Gear c/w Idler Shaft and Key
1
4
3304K
Gear Key - See Ref #2 and #3
2
5
3301
Seal Nut
1
6
3316
Grease Fitting (For Bronze Bushings)
4
3316
Grease Fitting (For Teflon Bushings)
1
7
3314
End Plate Bolt
24
8
3315H
Dowel Pin
4
9
3306
Pump Gasket
10
10
3308BF
End Plug c/w Grease Fitting (For Bronze Bushings)
3
3308B
End Plug (For Teflon Bushings)
3
11
3302SECO
Front Plate (c/w bushings)
1
12
309B
Bronze Bushing
5
309T
Teflon Bushing
5
Ref #
Part Number
Description
Qty
13
ECOSH
Seal Cartridge
1
14
3326C
High Performance Seal
6
15
VTOR030
O-Ring
3
16
3326V
Quick Change Containment Sleeve
1
17
ECOSL
Quick Change Sleeve
1
18
3307ECO
Back Plate (c/w bushings)
1
19
3318
Drain Plug
2
20
310
Adaptor Flange
2
21
311
Adaptor Flange Gasket
2
22
346FBK
Adaptor Flange Bolt Kit
1
23
3307HWP
Wear Plate (selected pumps only)
2
SKECO
Seal Kit for Eco-Seal S
1
Any 3 digit part numbers need to have the port size of the pump (2" or 3") added to the front of the part number.
(i.e. part number is 3303 for Centre case for the 3" pump)
