Pump Life

Flow Volume

Leak Resistance

Ease of Repair


Standard
Options
Drive Configuration
Drive on Bottom
Drive on Top
Port Configuration
180 Degree
Housing
Ductile Iron
End Plates
Ductile Iron
Wear Plates
Hardened Steel
Gears
Buna-N Nitrile
Helical Steel
Helical Delrin
Bushings
N/A
N/A
Bearings
High Load Steel
Packing
N/A
N/A
Lip Seals
Buna-N Nitrile
N/A
Mechanical Seal
N/A
N/A
Shafts
1 1/8" Steel
1 1/8" Stainless Steel
Operating Criteria
Buna-N Rubber Gears
Progressive Helical Steel Gears
Max. Operating Temperature
70°C
160°C
Max. Rotation Speed
500 RPM
750 RPM
Max. Working Pressure
125 PSI
150 PSI

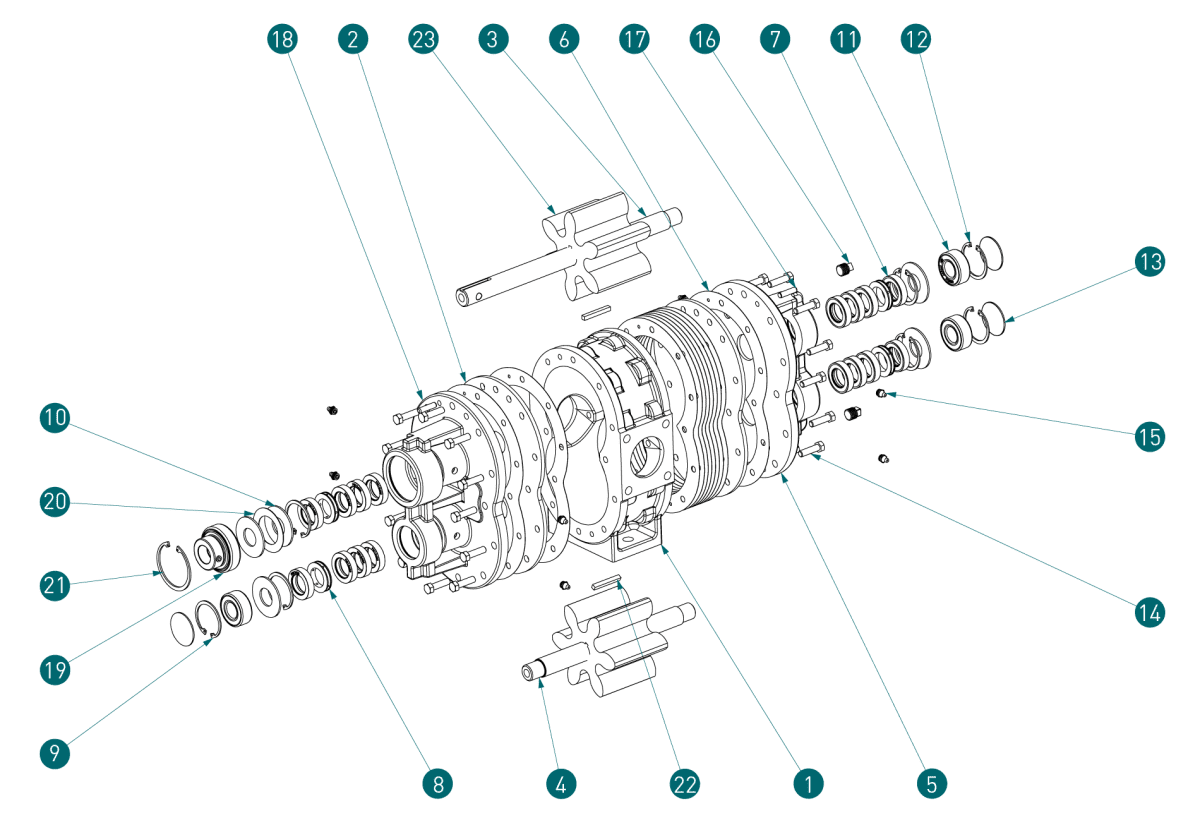

XP 2400 Pump Curve
Ref #
Part Number
Description
Qty
1
303
Centre Case
1
3
420
Buna-N Nitrile Drive Gear c/w Drive Shaft and Key
1
4
419
Buna-N Nitrile Idler Gear c/w Idler Shaft and Key
1
5
3422
Back Plate
1
6
3306
Pump Gasket
10
7
3423
Buna-N Seals
16
8
3424T
Teflon Lantern Ring
4
9
3432
Seal Lock Ring
4
10
3430
Black Washer
4
11
3425
Small Bearing
3
12
3429
Red Washer
4
13
3427
Bearing Lock Ring
3
Ref #
Part Number
Description
Qty
14
3431P
Expansion Plug
3
15
3314XL
Hex Bolt
24
16
3316
Grease Fitting
8
17
3318
Drain Plug
18
3315-3/8
Dowel Pin
4
19
3421
Front Plate
1
20
3426
Large Bearing
1
21
3434
Steel Washer
1
22
3428
Large Lock Ring
1
23
3304K
Gear Key - See Ref#3 and #4
2
SB400
Seal and Bearing Kit for XP Series

Any 3 digit part numbers need to have the port size of the pump (2" or 3") added to the front of the part number.
(i.e. part number is 3303 for Centre case for the 3" pump)
